Exit for Emergency Use Only Sign, Emergency Exit (Left Hand) – IMO MES002 / ISO 7010-E001 – 114416

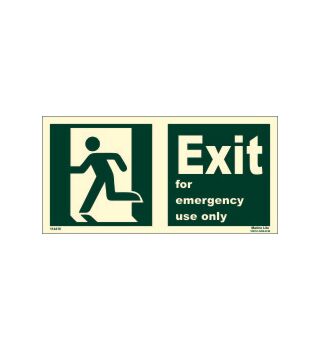

Photoluminescent two-panel sign pairing the IMO symbol MES002 "Emergency exit (left hand)" with the wording "Exit for emergency use only". It identifies exits reserved for emergencies rather than normal traffic, using the symbol set of IMO Resolution A.1116(30).

Technical Specifications

• Symbol: IMO MES002, Emergency exit (left hand) (equivalent ISO 7010-E001): running man heading left, in a separate panel next to the wording "Exit for emergency use only"; no arrow.
• Regulatory basis: SOLAS compliant. IMO Resolution A.1116(30), Escape route signs and equipment location markings (adopted 5 December 2017), sets the symbols for marking escape routes under SOLAS regulation II-2/13.3.2.5.1. Its symbol catalogue is based on ISO 24409-2:2014.
• Photoluminescent performance: 100 mcd/m² after 10 min and 10 mcd/m² after 60 min, decay time 1,200 min, printed on every sign as "100/10-1200-K-W" (K: yellow-green afterglow, W: white in daylight). This exceeds the 15 mcd/m² (10 min) and 2 mcd/m² (60 min) minimum set by IMO A.752(18) and ISO 15370:2021 for photoluminescent low-location lighting materials.
• Format: horizontal, 15 x 30 cm or 10 x 30 cm.
• Material: standard on TYPE 1 photoluminescent self-adhesive vinyl (PH); also available on TYPE 2 photoluminescent rigid PVC (RPH) with the same performance. Both are UV resistant for indoor and outdoor use.
• Installation: self-adhesive on smooth, clean surfaces free of grease and dust (not on emulsion paint); rigid PVC drilled at the corners or fixed with double-sided tape.
• Related products: The same symbol with the shorter wording "Exit": 114414. Wording-only sign: 104424.

Manufactured in Piraeus by Marine Lite under an ISO 9001:2015 quality management system certified by LRQA since 2011, for the production and supply of IMO safety signs. We deliver worldwide to ship operators, shipyards, ports and distributors. As a Lloyd's Register approved service supplier, Marine Lite also carries out on-board photometric inspections of photoluminescent low-location lighting (LLL) systems worldwide. Other sizes, materials and vessel logos are available on request.
