Lifeboat Direction Sign, Arrow Left – IMO LSS001 / ISO 7010-E036 – 114304

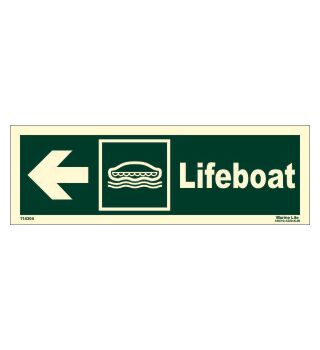

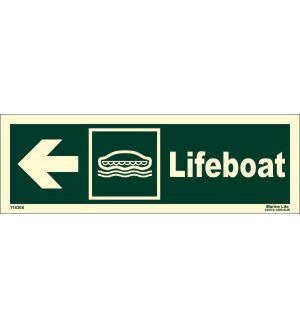

Photoluminescent direction sign with an arrow pointing left, the IMO lifeboat symbol LSS001 and the word "Lifeboat". It guides people along the route from the assembly station to the lifeboat embarkation area.

Technical Specifications

• Symbol: IMO LSS001, Lifeboat (equivalent ISO 7010-E036), with an arrow pointing left and the text "Lifeboat".
• Regulatory basis: SOLAS compliant. IMO Resolution A.1116(30), Escape route signs and equipment location markings (adopted 5 December 2017), contains the life-saving symbols (LSS series), including the lifeboat symbol used here. The resolution refers to SOLAS regulations III/9, III/11 and III/20.10, and its symbol catalogue is based on ISO 24409-2:2014.
• Photoluminescent performance: 100 mcd/m² after 10 min and 10 mcd/m² after 60 min, decay time 1,200 min, printed on every sign as "100/10-1200-K-W" (K: yellow-green afterglow, W: white in daylight). This exceeds the 15 mcd/m² (10 min) and 2 mcd/m² (60 min) minimum set by IMO A.752(18) and ISO 15370:2021 for photoluminescent low-location lighting materials.
• Format: horizontal, 10 x 30 cm.
• Material: standard on TYPE 1 photoluminescent self-adhesive vinyl (PH); also available on TYPE 2 photoluminescent rigid PVC (RPH) with the same performance. Both are UV resistant for indoor and outdoor use.
• Installation: self-adhesive on smooth, clean surfaces free of grease and dust (not on emulsion paint); rigid PVC drilled at the corners or fixed with double-sided tape.
• Related products: Arrow-right version: 114305. Use with the assembly station signs 114321 and 114324.

Manufactured in Piraeus by Marine Lite under an ISO 9001:2015 quality management system certified by LRQA since 2011, for the production and supply of IMO safety signs. We deliver worldwide to ship operators, shipyards, ports and distributors. As a Lloyd's Register approved service supplier, Marine Lite also carries out on-board photometric inspections of photoluminescent low-location lighting (LLL) systems worldwide. Other sizes, materials and vessel logos are available on request.
