Engine Room Safety & Fire Prevention

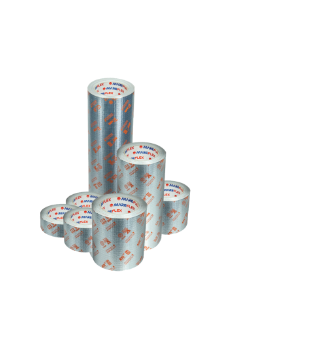

In demanding marine environments, protecting the engine room against dangerous leaks is critical. The MF03 Antispray Tape is specially engineered to prevent the spraying of flammable liquids (such as fuel oil, hydraulic fluids, and lubricants) under high pressure onto hot surfaces.
The tape's primary function is to transform a high-pressure spray into a controlled drip. This prevents the formation of a flammable mist and eliminates the risk of fire hazards.
The MF03 represents the advanced generation of anti-splashing tapes, offering enhanced resistance to line pressures up to 25 bar (363 PSI).
SOLAS Regulations Compliance
Installing anti-spray tape is a mandatory requirement under international maritime regulations:
SOLAS Consolidated Edition 2001, Regulation II-2/4.2.2.5.3
Marinelite supplies the MF03 tape complete with all necessary Type Approvals for seamless vessel inspections and full compliance.
MF03 Features & Key Advantages
Reinforced Fiberglass Fabric
Manufactured from high-grade woven fiberglass with an impregnated coating for maximum mechanical strength and pressure resistance.
Steam & Water Resistant
Features water-repellent properties, making it ideal not only for fuel lines, but also for steam pipe installations.
Easy & Quick Installation
Equipped with an improved release liner, allowing fast application even on complex shapes (flanges, valves, and fittings).
Technical Specifications (Physical Properties)
The technical data for MF03 tape confirms its superiority in demanding marine and industrial applications:
| Property | Value / Description |
|---|---|
| Appearance / Color | Silver with orange print |
| Max. Operating Pressure | 25 bar (363 PSI) |
| Temperature Range | -40 °C to +160 °C |
| Thickness (excl. liner) | 340 µm |
| Tensile Strength | 3460 N |
| Adhesion (PN-EN ISO 2411:2017-11) | 58 N/50 mm |
| Elongation | 5.8 % |
| Chemical Resistance | Excellent resistance to mineral oils, fuels, grease, aliphatic solvents, weak acids, salts, and alkalis. |
| Shelf-life | At least 5 years from shipment date (stored in original packaging at 21°C and 50% relative humidity). |
Available Dimensions & IMPA Codes
The MF03 tape is supplied by Marinelite in 10-meter rolls across 8 standard widths. Custom dimensions are also available upon request.
| Product Code | Dimensions (Width × Length) | IMPA Code |
|---|---|---|
| MF03-35 | 35 mm × 10 m | 871801 |
| MF03-50 | 50 mm × 10 m | 871802 |
| MF03-75 | 75 mm × 10 m | 871808 |
| MF03-100 | 100 mm × 10 m | 871804 |
| MF03-140 | 140 mm × 10 m | 871803 |
| MF03-250 | 250 mm × 10 m | 871807 |
| MF03-500 | 500 mm × 10 m | 871805 |
| MF03-1000 | 1000 mm × 10 m | 871806 |
Class Approvals & Certifications
The MF03 tape is Type Approved by leading international classification societies, ensuring global acceptance:
Request a Quote from Marinelite
Need coverage for your fleet or immediate delivery at your next port of call? Contact the Marinelite team for pricing, availability, and technical support.
