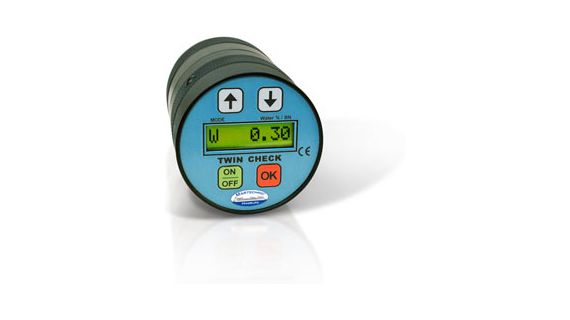

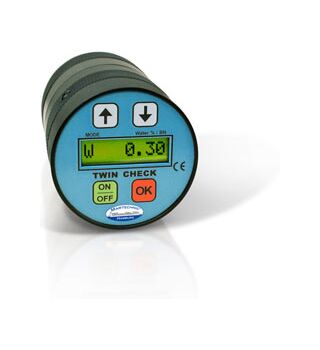

T5108 - Twin Check - Electronic Water-in-Oil /B N Test Device

T5108

TWIN CHECK

Electronic Water-in-Oil / BN Test device

TWIN CHEK was developed to measure water in oil and rest alkalinity in oil simple and in a short time for example on board of a vessel. The test results are readable direct in the display.



Features:

  • Parameters to measure
    • Water-in-oil
  • Measuring range: 0 – 1.0 vol. % H2O
  • Measuring time: up to 20 min.
  • Accuracy: +/- 3 %

    • Base number:
  • Measuring range: 0 - 100 BN
  • Measuring time: up to 20 min.
  • Accuracy: +/- 1 BN

Benefits:

  • Saving of costs because malfunction is recognized in time and repairing could avoid damages
  • Two test procedures are possible with only one reagent per Test
  • Easy to handle even for untrained personnel
  • Applicable for all mineral oil based fluids
  • Easy to use and for transport

To measure water in oil or the base number only one reagent (WA-SOL® and ALCA Solution) is necessary. The reagent is filled in the bigger chamber of the test device and the oil sample with a 10 ml syringe in the smaller chamber. The device is closed and now the measurement starts while shaking the equipment every 2 minutes for about 10 seconds in a time period of 20 minutes.

Training Video can be found by following this link:

http://www.martechnic.com/eng/videos/testing/alcalinity_twin_check.php
